ETA - Machined Chain Guide Wear Strip

The ETA machined wear strip profile is manufactured as a guide rail for DIN 8187 Simplex roller chains. The ETA profile can be supplied with a carrier profile if required.

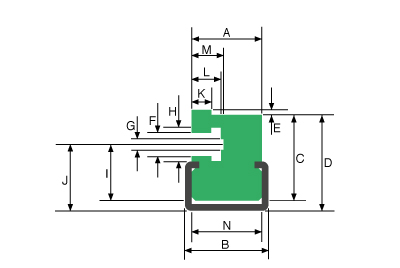

Dimensional Drawing:

Availability:

Available in many different sizes. Please reference the dimensional drawing above with the dimensions in the table below.

Product Code / Chain No.	A	B	C	D	E	F	G	Carrier Profile*	Chain Pitch
ETA-06B1	20	20	25	27.0	1.4	6.6	4.0	WSC-C2010	3/8" x 7/32"
ETA-08B1	20	20	28	30.0	2.0	8.7	5.0	WSC-C2010	½" x 5/16"
ETA-10B1	20	20	34	36.0	2.5	10.8	6.0	WSC-C2010	5/8" x 3/8"
ETA-12B1	28	28	38	40.5	2.5	12.5	7.0	WSC-C2812	¾" x 7/16"
ETA-16B1	38	38	50	53.0	3.0	16.1	9.0	WSC-C3818	1" x 17mm

Product Code / Chain No.	H	I	J	K	L	M	N	Carrier Profile*	Chain Pitch
ETA-06B1	9.6	15.0	17	5.6	8.7	9.9	17	WSC-C2010	3/8" x 7/32"
ETA-08B1	12.8	16.0	18	7.6	11.5	12.7	17	WSC-C2010	½" x 5/16"
ETA-10B1	15.5	19.0	21	9.5	13.5	14.8	17	WSC-C2010	5/8" x 3/8"
ETA-12B1	16.9	21.5	24	11.5	15.9	17.5	24	WSC-C2812	¾" x 7/16"
ETA-16B1	24.4	31.0	34	16.0	25.7	26.8	33	WSC-C3818	1" x 17mm

Product Code / Chain No.	A	B	C	D	E
ETA-06B1	20	20	25	27.0	1.4
ETA-08B1	20	20	28	30.0	2.0
ETA-10B1	20	20	34	36.0	2.5
ETA-12B1	28	28	38	40.5	2.5
ETA-16B1	38	38	50	53.0	3.0

Product Code / Chain No.	F	G	H	I	J
ETA-06B1	6.6	4.0	9.6	15.0	17
ETA-08B1	8.7	5.0	12.8	16.0	18
ETA-10B1	10.8	6.0	15.5	19.0	21
ETA-12B1	12.5	7.0	16.9	21.5	24
ETA-16B1	16.1	9.0	24.4	31.0	34

Product Code / Chain No.	K	L	M	N
ETA-06B1	5.6	8.7	9.9	17
ETA-08B1	7.6	11.5	12.7	17
ETA-10B1	9.5	13.5	14.8	17
ETA-12B1	11.5	15.9	17.5	24
ETA-16B1	16.0	25.7	26.8	33

Product Code / Chain No.	Carrier Profile*	Chain Pitch
ETA-06B1	WSC-C2010	3/8" x 7/32"
ETA-08B1	WSC-C2010	½" x 5/16"
ETA-10B1	WSC-C2010	5/8" x 3/8"
ETA-12B1	WSC-C2812	¾" x 7/16"
ETA-16B1	WSC-C3818	1" x 17mm

* Carrier profiles are not supplied with the wear strip as standard. Please state upon enquiry if required.
