Indexed Clamping Levers

Ideal for use in restricted space or where extra leverage is required. Indexed clamping levers are available in moulded glass filled nylon or as zinc die castings. Operated by a single ratchet movement the handle is rotated by pressing the metal retaining screw or plastic push button where total electrical insulation is required. Indexed clamping levers are supplied in five handle lengths with threads ranging from M4-M18.

Die Cast Indexed Clamping Lever - Female Thread

Main Insert Material: Black oxide treated steel.
Material: Die cast alloy.

Product Code	R	L	H	D	d	c	h	h1	h2	h3	d1	Q
CLFTDC-4713/43	43	50	30	14	10	9	26	30	5	14	M4 / M5 / M6	7 / 9 / 9
CLFTDC-4713/65	65	75	45	19	14	13	32	34	7	14	M6 / M8 / M10	10 / 10 / 9
CLFTDC-4713/80	80	91	57	22	16	16	40	42	8	16	M8 / M10 / M12	14 / 13 / 12
CLFTDC-4713/94	94	107	65	26	20	18	47	50	10.5	19	M12 / M14 / M16	20
CLFTDC-4713/108	108	123	75	30	23	20	54	56	12	23	M14 / M16 / M18	26 / 26 / 25

Product Code	d	c	h	h1
CLFTDC-4713/43	10	9	26	30
CLFTDC-4713/65	14	13	32	34
CLFTDC-4713/80	16	16	40	42
CLFTDC-4713/94	20	18	47	50
CLFTDC--4713/108	23	20	54	56

Product Code	h2	h3	d1	Q
CLFTDC-4713/43	5	14	M4 / M5 / M6	7 / 9 / 9
CLFTDC-4713/65	7	14	M6 / M8 / M10	10 / 10 / 9
CLFTDC-4713/80	8	16	M8 / M10 / M12	14 / 13 / 12
CLFTDC-4713/94	10.5	19	M12 / M14 / M16	20
CLFTDC-4713/108	12	23	M14 / M16 / M18	26 / 26 / 25

Die Cast Indexed Clamping Lever - Male Thread

Main Insert Material: Black oxide treated steel.
Material: Die cast alloy.

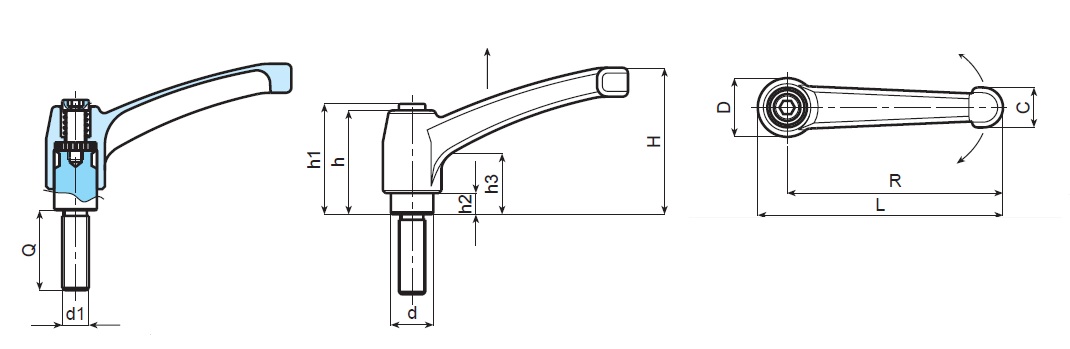

Product Code	R	L	H	D	d	c	h	h1	h2	h3	d1
CLMTDC-4714/43	43	50	30	14	10	9	26	30	5	14	M4 / M5 / M6 / M8
CLMTDC-4714/65	65	75	45	19	14	13	32	34	7	14	M6 / M8 / M10
CLMTDC-4714/80	80	91	57	22	16	16	40	42	8	16	M8 / M10 / M12
CLMTDC-4714/94	94	107	65	26	20	17.5	47	50	10.5	19	M12 / M14 / M16
CLMTDC-4717/108	108	123	75	30	23	20	54	56	12	23	M12 / M14 / M16 / M18

Product Code	d	c	h	h1
CLMTDC-4714/43	10	9	26	30
CLMTDC-4714/65	14	13	32	34
CLMTDC-4714/80	16	16	40	42
CLMTDC-4714/94	20	17.5	47	50
CLMTDC-4717/108	23	20	54	56

Product Code	h2	h3	d1
CLMTDC-4714/43	5	14	M4 / M5 / M6 / M8
CLMTDC-4714/65	7	14	M6 / M8 / M10
CLMTDC-4714/80	8	16	M8 / M10 / M12
CLMTDC-4714/94	10.5	19	M12 / M14 / M16
CLMTDC-4717/108	12	23	M12 / M14 / M16 / M18

Note: Q thread length by request.

Indexed Clamping Lever - Female Thread

Main Insert Material: Zinc plated steel.
Material: Black reinforced polyamide.

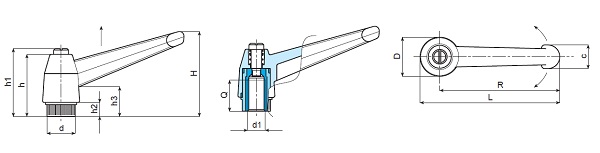

Product Code	R	L	H	D	d	c	h	h1	h2	h3	d1	Q
CLFT-4513/43	43	52	33	17	11.5	11	27	30	6	14	M4 / M5 / M6	10 / 9 / 9
CLFT-4513/65	65	77	45	23	15	13	34	38	8	17	M6 / M8 / M10	15 / 15 / 13
CLFT-4513/83	83	97	57	27	19	16	43	47	10	23	M8 / M10 / M12	17 / 17 / 16
CLFT-4513/104	104	121	70	33	24	19	50	53	11	26	M10 / M12 / M14 / M16	20 / 22 / 21 / 23

Product Code	d	c	h	h1
CLFT-4513/43	11.5	11	27	30
CLFT-4513/65	15	13	34	38
CLFT-4513/83	19	16	43	47
CLFT-4513/104	24	19	50	53

Product Code	h2	h3	d1	Q
CLFT-4513/43	6	14	M4 / M5 / M6	10 / 9 / 9
CLFT-4513/65	8	17	M6 / M8 / M10	15 / 15 / 13
CLFT-4513/83	10	23	M8 / M10 / M12	17 / 17 / 16
CLFT-4513/104	11	26	M10 / M12 / M14 / M16	20 / 22 / 21 / 23

Indexed Clamping Lever - Male Thread

Material: Black reinforced polyamide.
Main Insert Material: Zinc plated steel.

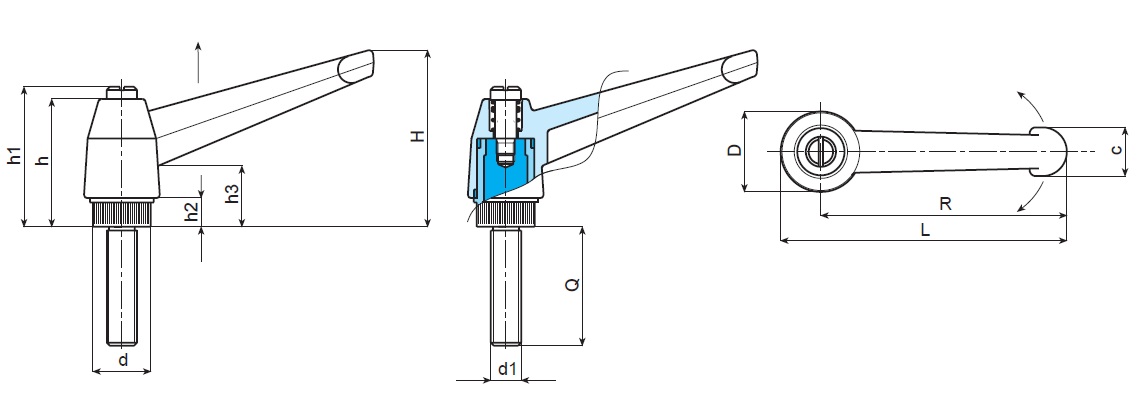

Product Code	R	L	H	D	d	c	h	h1	h2	h3	d1
