Polyurethane Brick Grabs

Polyurethane Brick Grabs  Polyurethane Brick Grabs

Polyurethane brick grabs are manufactured from a clear durable polyurethane which encapsulates a soft polyurethane foam centre. They can also be supplied with a reinforcing perforated plate if required. We also supply polyurethane brick grabs without a foam layer which are also used for impact protection applications.

Applications

Grabbing and transferring of brick and tiles.

Key Features

  • Durable, lightweight and can reduce product damage.
  • The soft foam centre helps to compensate for uneven loads.
  • They also provide high noise and sound reduction.

Availability

Also available: Extruded rubber brick grabs.

Brick Grabs with Foam Layer

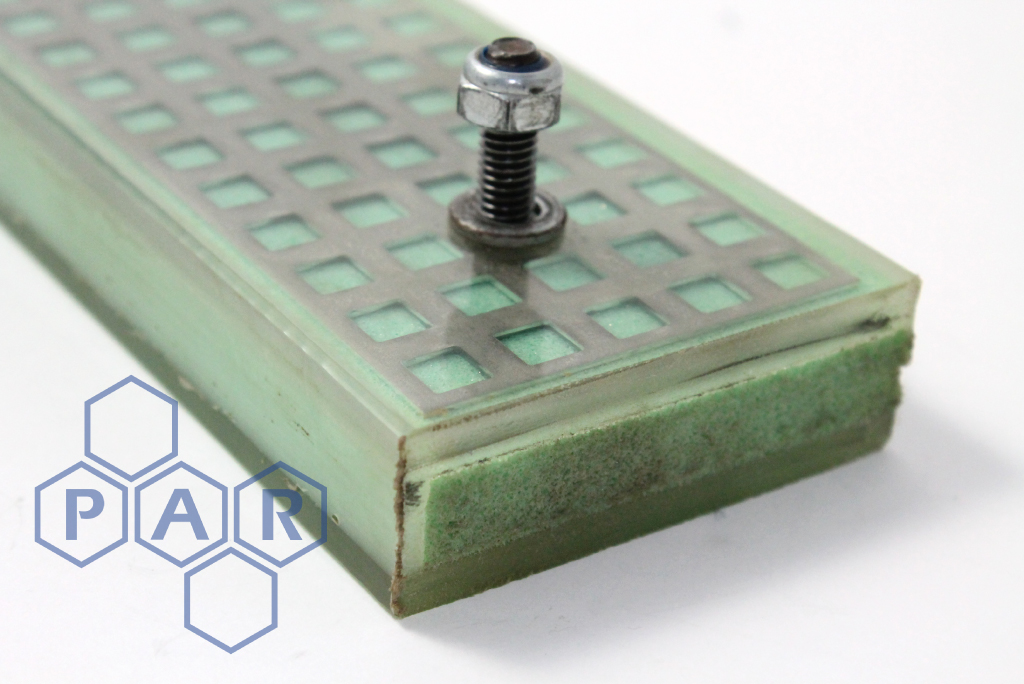

With perforated
plate insert
With Perforated Plate Insert
Without perforated
plate insert
Without Perforated Plate Insert
Foam Colour Foam Hardness** Foam Thickness (mm) Maximum Length (mm)* Maximum Width (mm)*
Green 1 5 / 10 / 15 / 20 1000

300

Blue 2 5 / 10 / 15 / 20 1000 300
Yellow 3 10 / 20 1000 300

*Note: All polyurethane brick grabs are manufactured to order and the maximum standard length is 1mtr. Other lengths can be manufactured upon request. Please state the length and width you require upon enquiry.

**Foam hardness is based on 1 being hardest, and 3 being softest.

Brick Grabs / Buffer Pads without Foam Layer

With red perforated
plate insert
With Red Perforated Plate Insert
With sheet
steel base
With Sheet Steel Base
With heavy-load
design plate insert
With Heavy-load Design Plate Insert
With st. steel
perforated plate insert
With Stainless Steel Perforated Plate Insert
Foam Colour Foam Thickness (mm) Maximum Length (mm)* Maximum Width (mm)*
Clear 75 1000

300

Yellow 55 / 75 / 90 1000 300

*Note: All polyurethane brick grabs are manufactured to order and the maximum standard length is 1mtr. Other lengths can be manufactured upon request. Please state the length and width you require upon enquiry.

Polyurethane Surface Finishes

Polyurethane brick grabs and buffer pads are available in a range of surface finishes. The smooth finish is suitable where there is no water or oil between the load and pad and is slip-resistant when dry. The ground surface is slightly roughened and is used when the pad comes into contact with fluids. The fabric surface is even rougher than the ground finish and is important if the pad is continuously coming into contact with water and oils. The roughness ensures a non-slip finish. Pyramid finish is commonly used for anti-slip protection on grabbers and flooring.

Smooth Finish
Smooth Finish
Ground Finsh
Ground Finish
Fabric Finish
Fabric finish
Pyramid Finish
Pyramid Finish

Examples of our Polyurethane Brick Grabs

Polyurethane Brick Grab
Polyurethane Brick Grab
